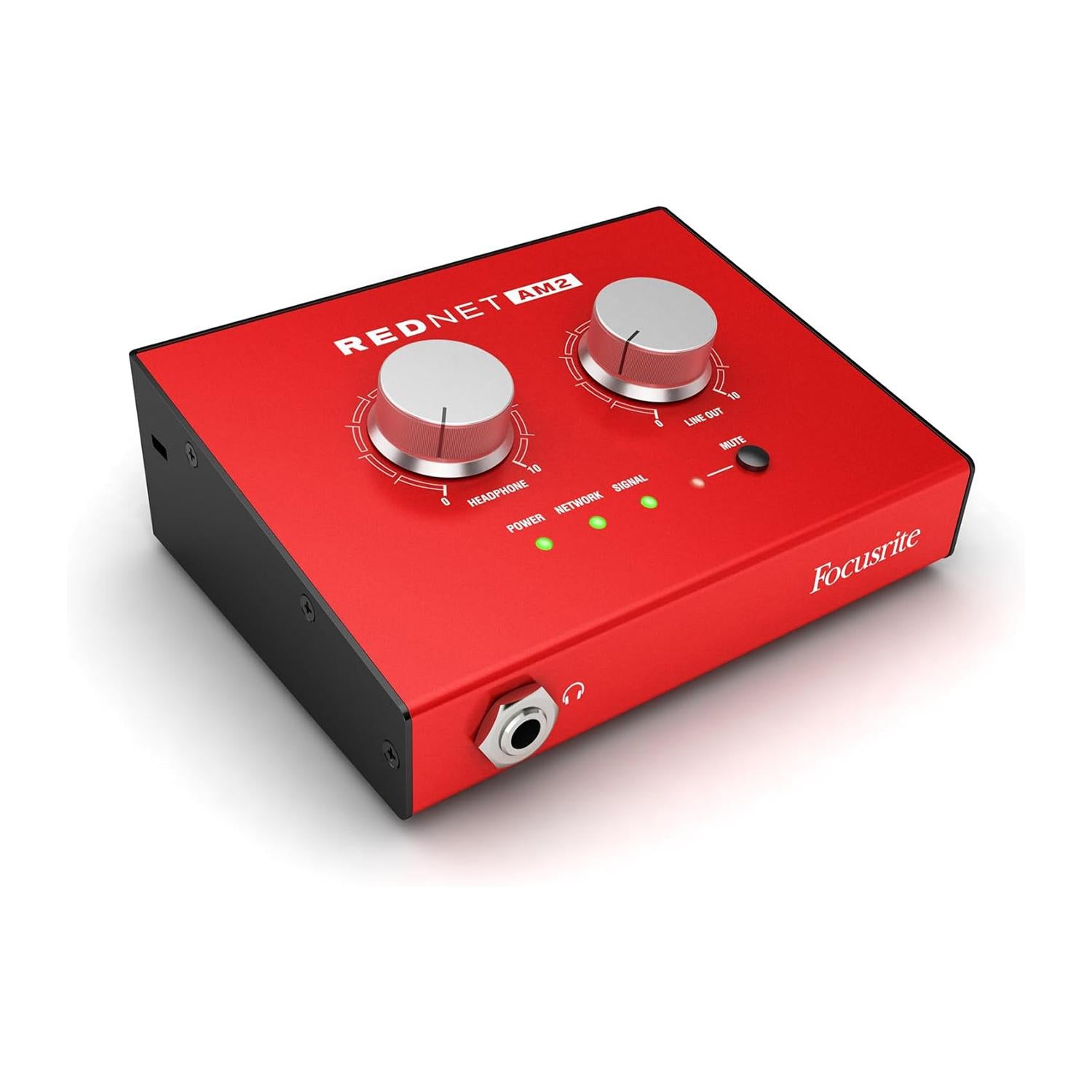

REDNET AM2 FOCUSRITE PRO Dante-Compatible Stereo Monitoring Unit

RedNet AM2 is a compact, Dante-compatible stereo monitoring unit that combines balanced line and headphone outputs for monitoring Dante network signals wherever needed. RedNet AM2 features a front-panel 1/4" TRS headphone jack plus a pair of rear-mounted balanced line outputs with male XLR connectors for speaker monitoring and other applications. RedNet AM2 can be powered via Power over Ethernet (PoE) or by an external DC power supply (included). RedNet AM2 is ideal for adding headphone outputs to a studio-based system, as well as offering a solution for education, live sound, and broadcast.

• Monitor-Quality Precision Digital Conversion for Dante Networks.


• Power to Drive High Impedance Headphones at Significant Levels: Ideal for Drums or Other Stage Applications.

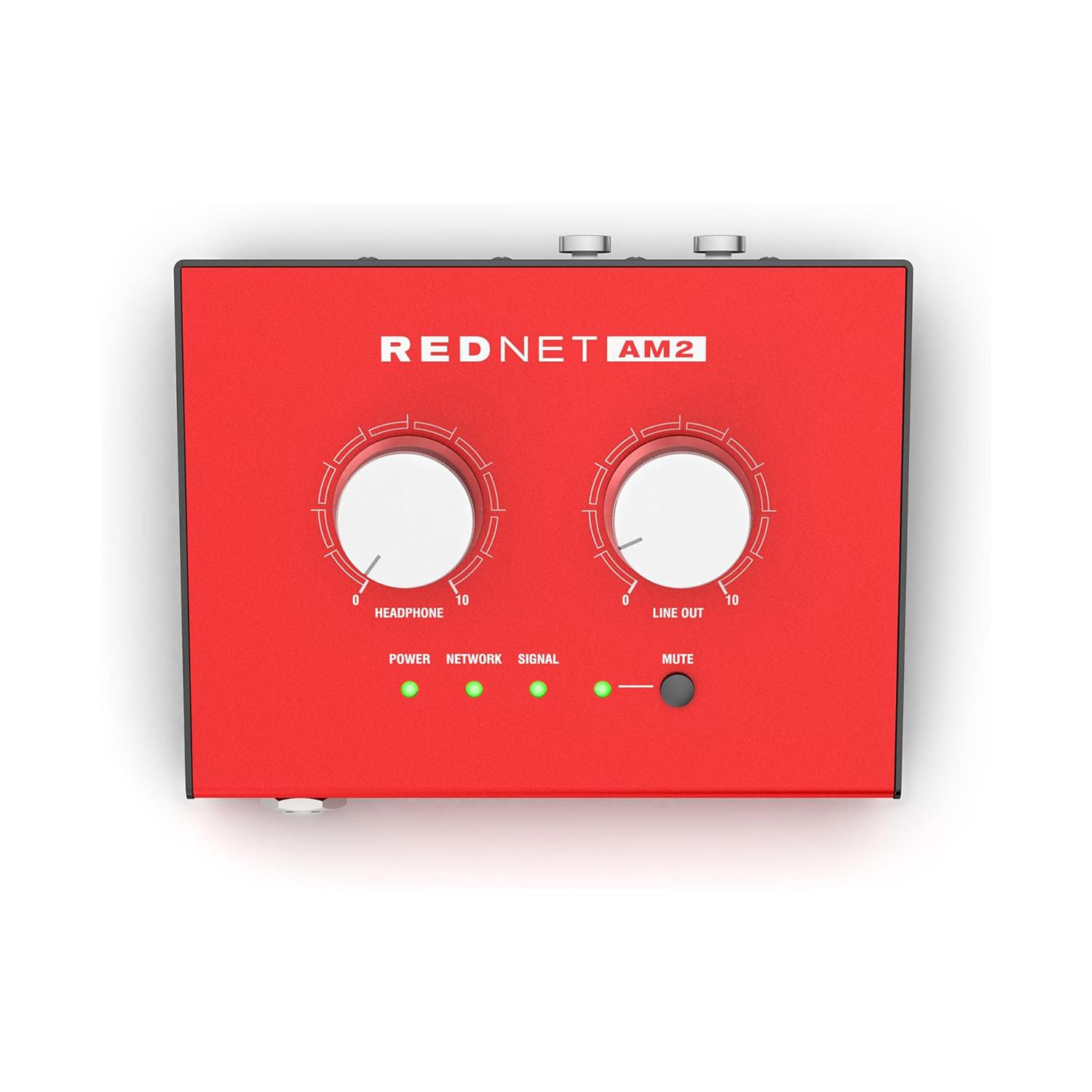

• Independent Line and Headphone Output Level Controls.


• Built-in Mute Switch: Eliminates the Signal Feeding Power Amplifiers or External Speakers.


• Power over Ethernet (PoE) or via included power supply.


• The integrated Gigabit Ethernet switch allows connection of an additional network device.


• Microphone Stand Holder: The socket on the base of the metal box allows for easy mounting.


• Dual XLR Line Level Outputs.

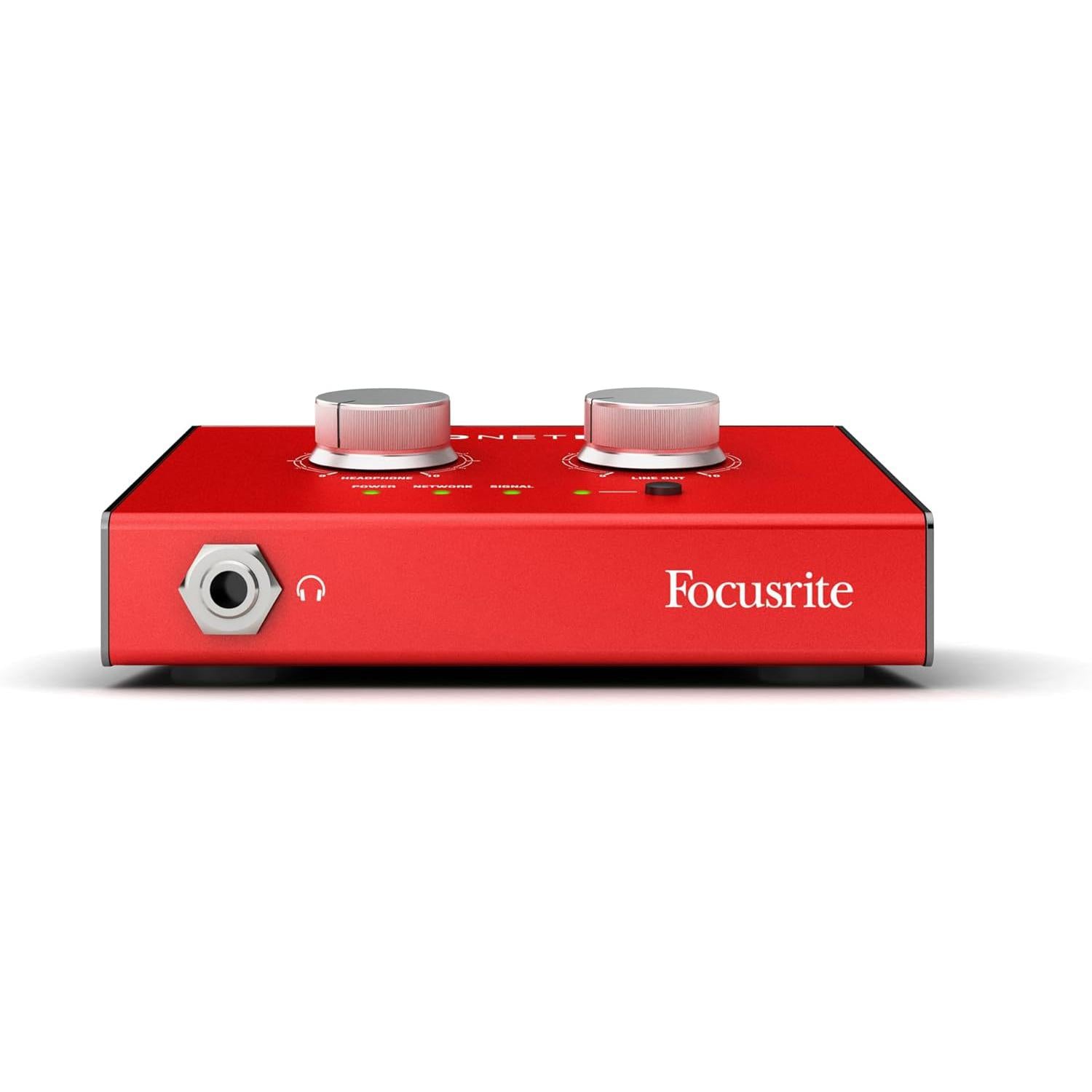

• 1/4" TRS Headphone Output.


• 2x etherCON Network Connectors with Integrated Network Switch.


• Signal Present, Network Connected and Power Indicators.


• Headphone Output: 1/4” Stereo Jack.

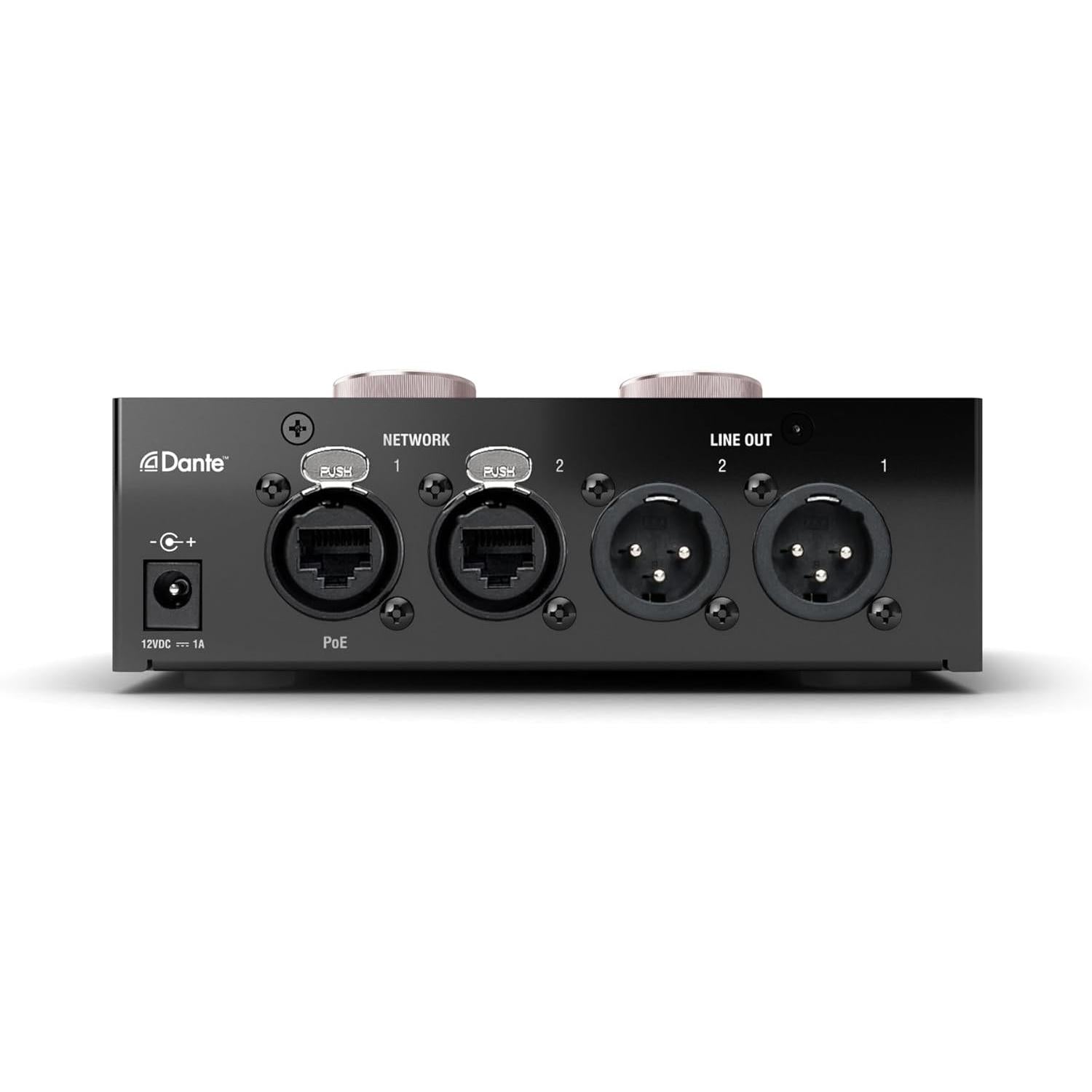

• Line Output: 2 x XLR-3 male.


• Power Supply: 1 PoE Input (Network Port 1) and 1 12V DC Barrel Input Connector.


• Network: 2 x etherCON NE8FBH, also compatible with standard RJ45 connectors.


• This product has a 1-year warranty against factory defects.
