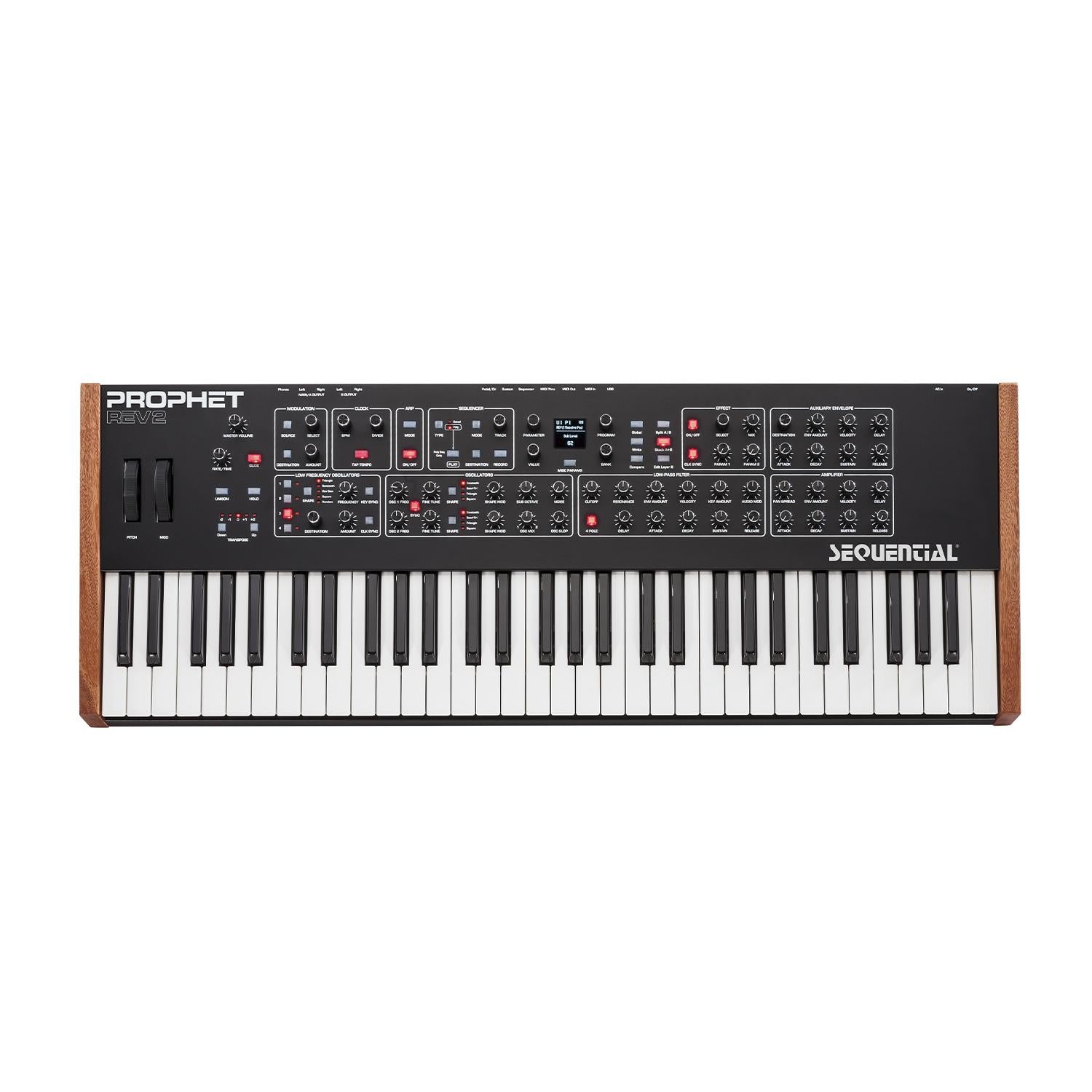

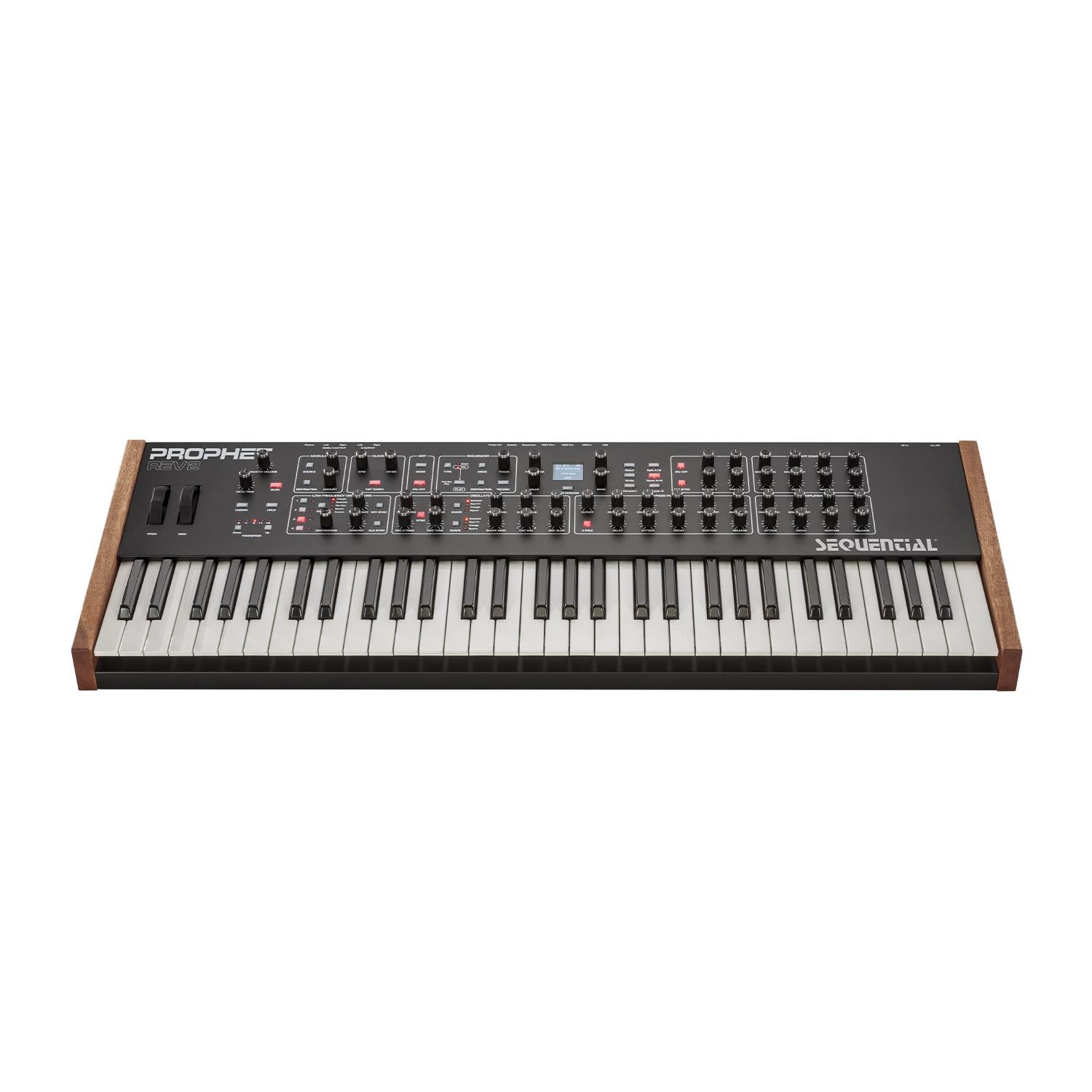

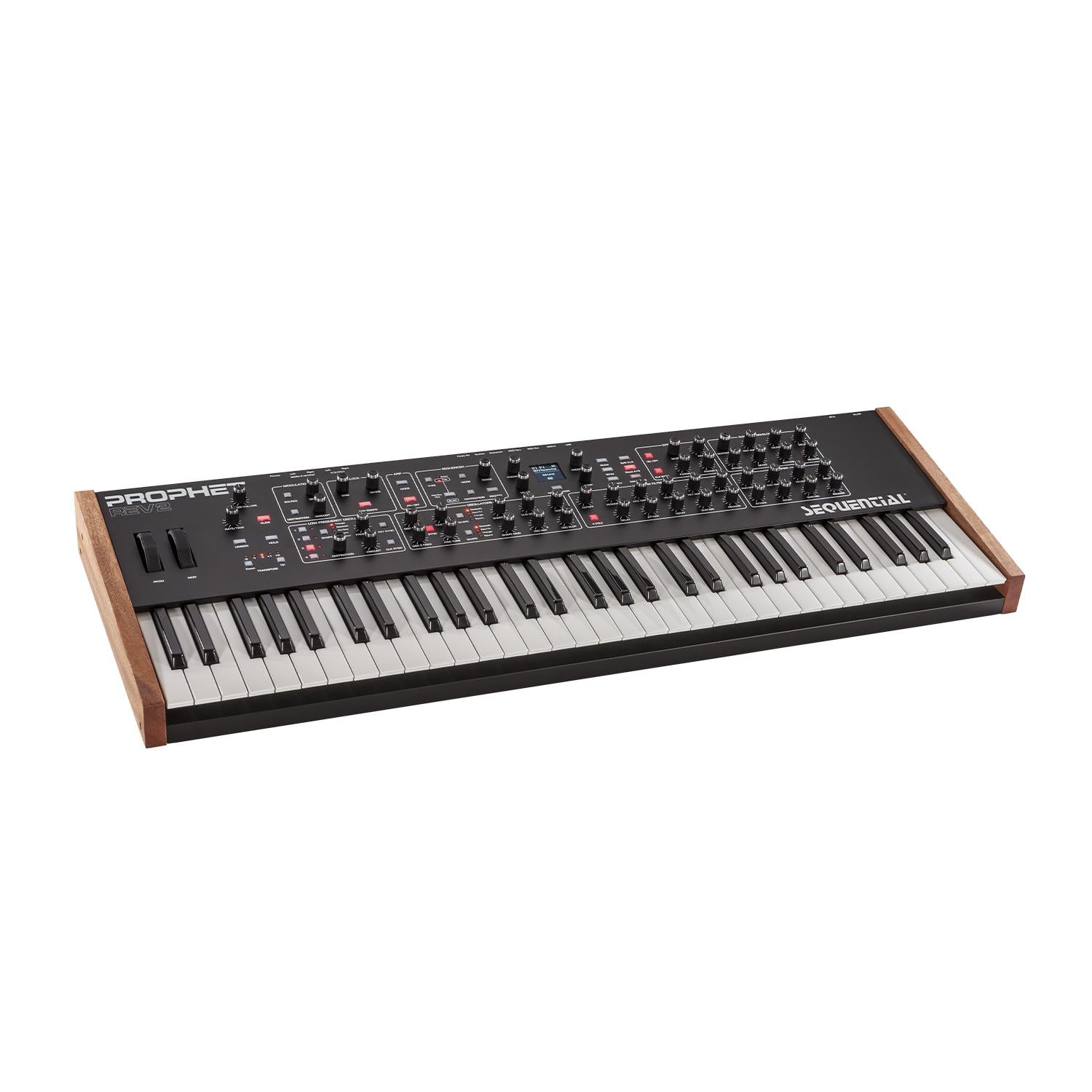

16-Voice Polyphonic Analog Synthesizer REV2 16V KEYBOARD SEQUENTIAL

The Prophet Rev2 gets its bold, punchy sound from its resonant 2/4-pole, low-pass Curtis filters per voice. These are the same filters used not only on the Prophet '08, but on many classic instruments from the '70s and '80s. A separate Audio Mod control adds additional harmonic complexity and movement. With 16 voices to play with, you have the freedom to assign them however you like. Play two-fist chords, stack two 8-voice sounds for massive and complex textures, or split the keyboard into two completely separate 8-voice instruments.

• 5-octave keyboard with semi-weighted action, velocity and aftertouch.


• 55 Knobs and 35 Buttons allow for deep and complete Editing with little to no Menu Diving.


• Spring-Actuated Pitch Wheel and Assignable Modulation Wheel.


• 512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program.

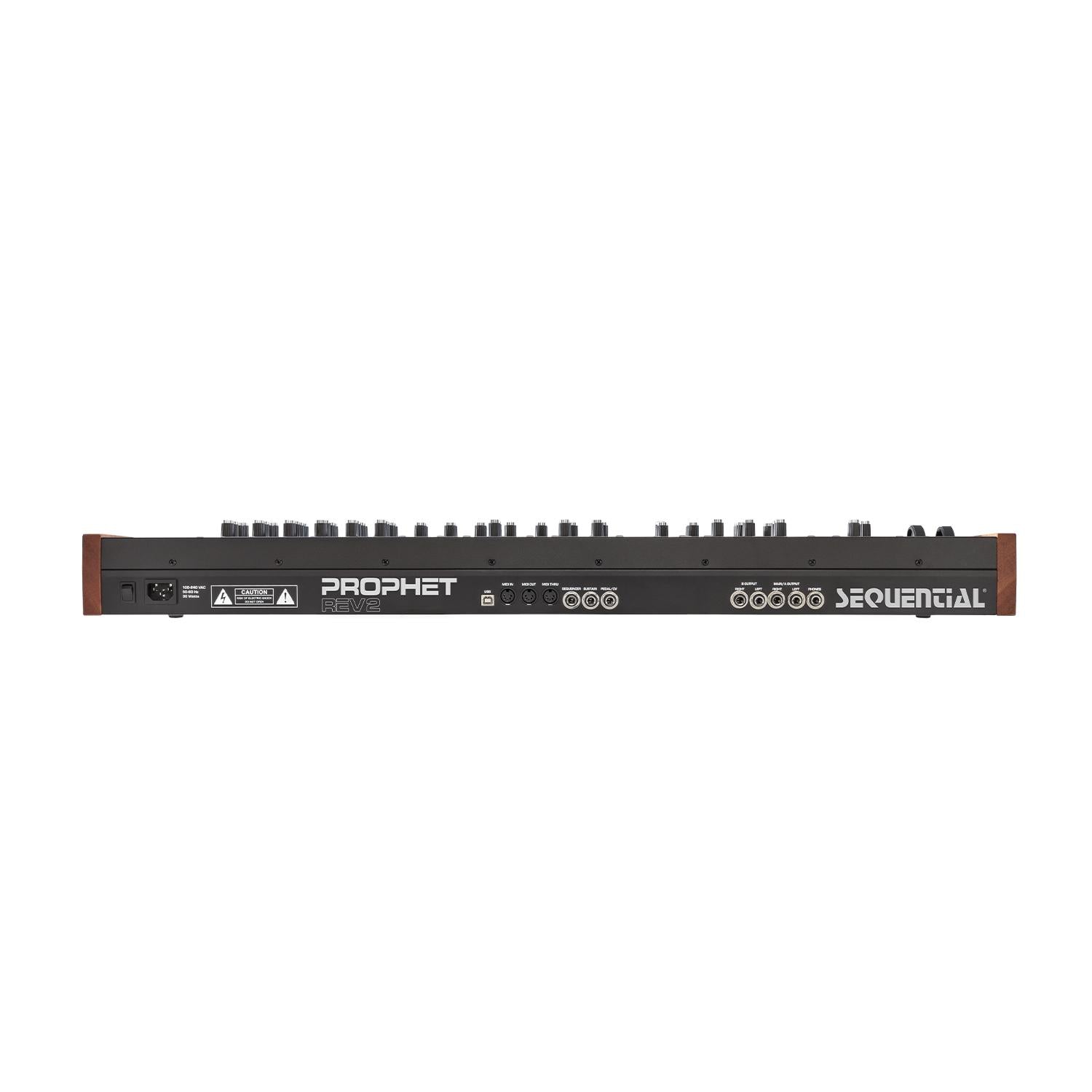

• Input, Output, MIDI Passthrough


• Main Stereo Audio Output: 1/4" unbalanced.


• Stereo Audio Output B: 1/4" unbalanced.


• Sustain Pedal Input: Accepts normally-on or normally-off momentary footswitches.


• Pedal/CV Input: Responds to Expression Pedals or Control Voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).


• Headphone Output: 1/4" stereo jack connector.


• IEC AC Power Inlet for Internal Power Supply.


• It operates worldwide with voltages between 100 and 240 volts at 50 to 60 Hz.


• Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration).


• This product has a 1-year warranty against factory defects.
