Desktop Analog Module OB 6 MODULE SEQUENTIAL

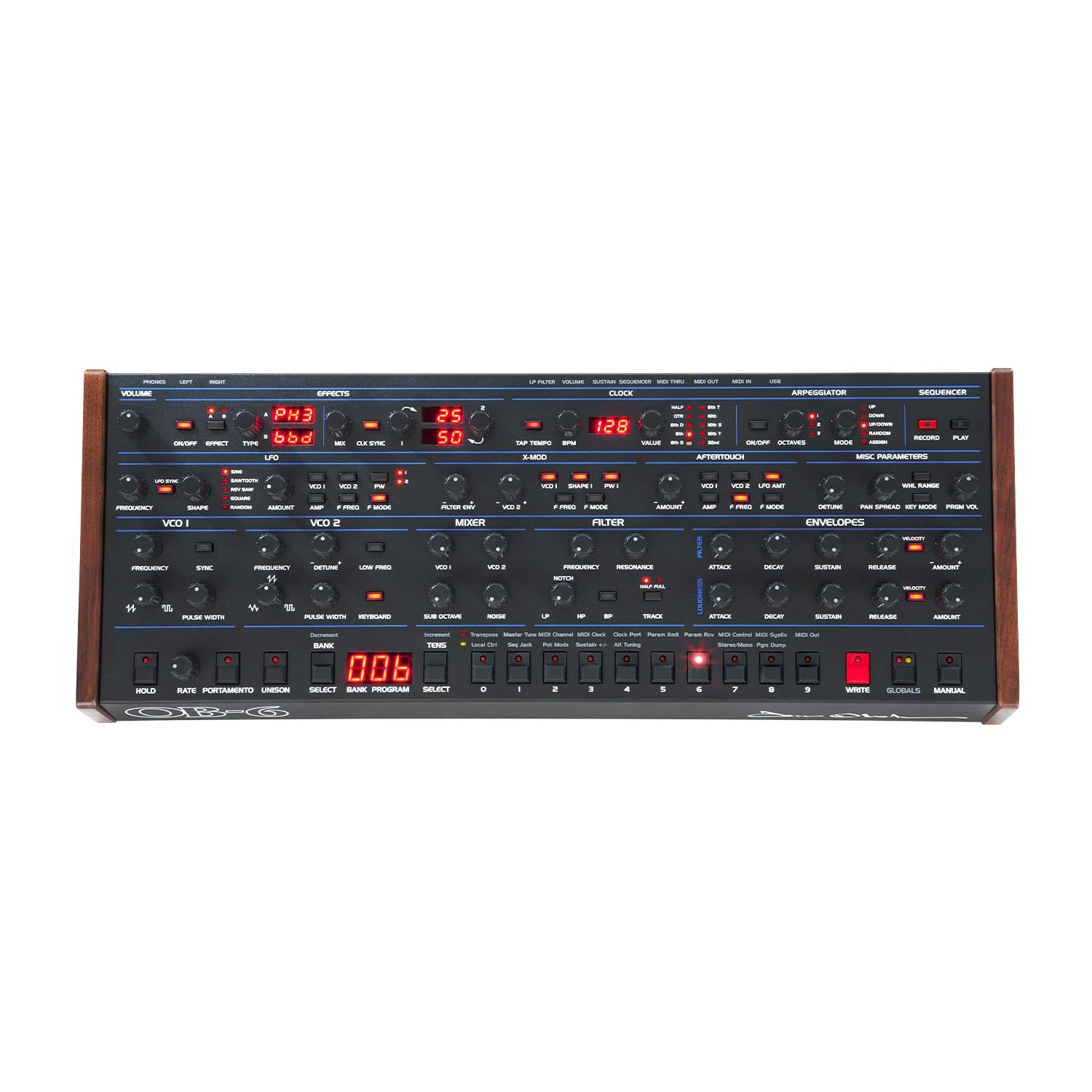

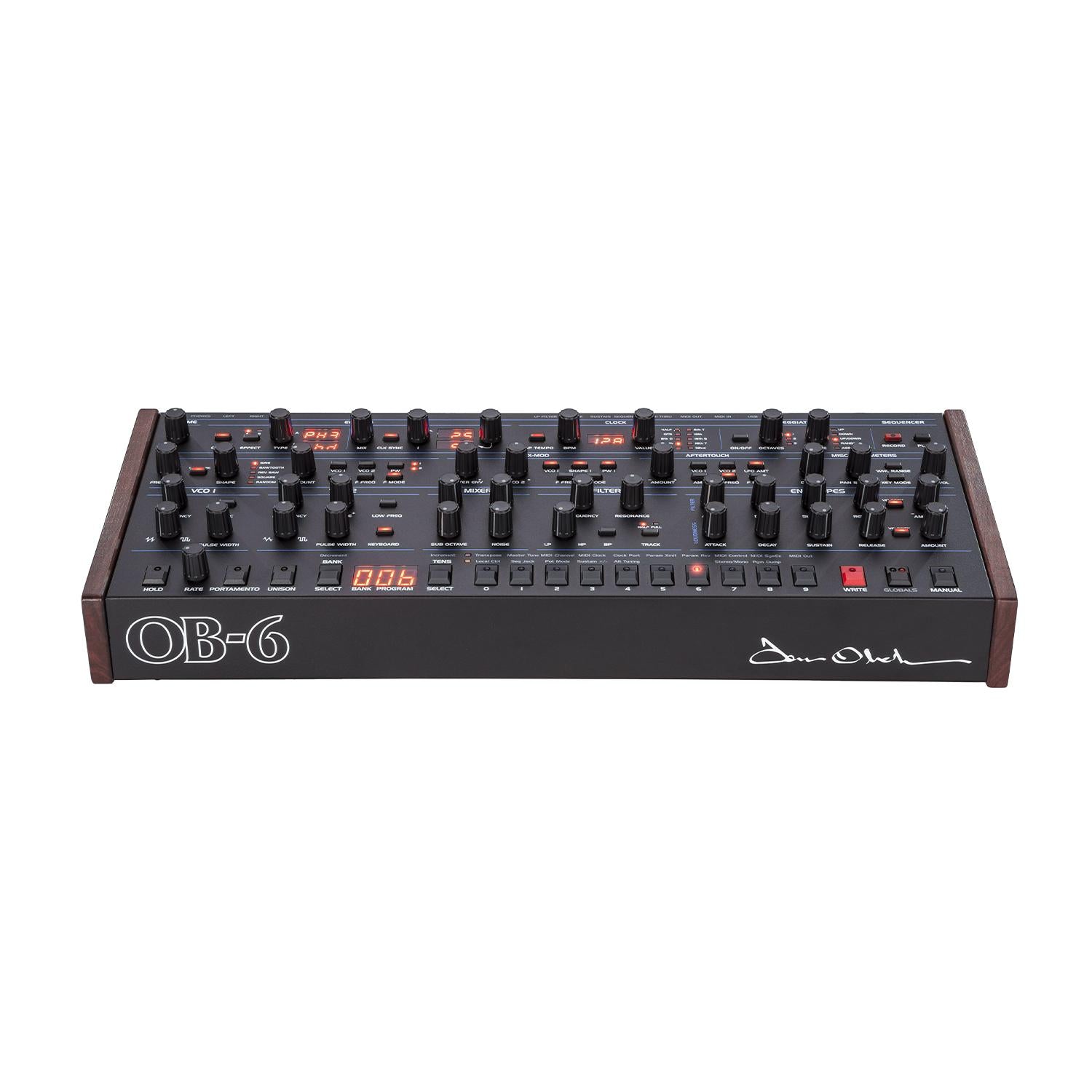

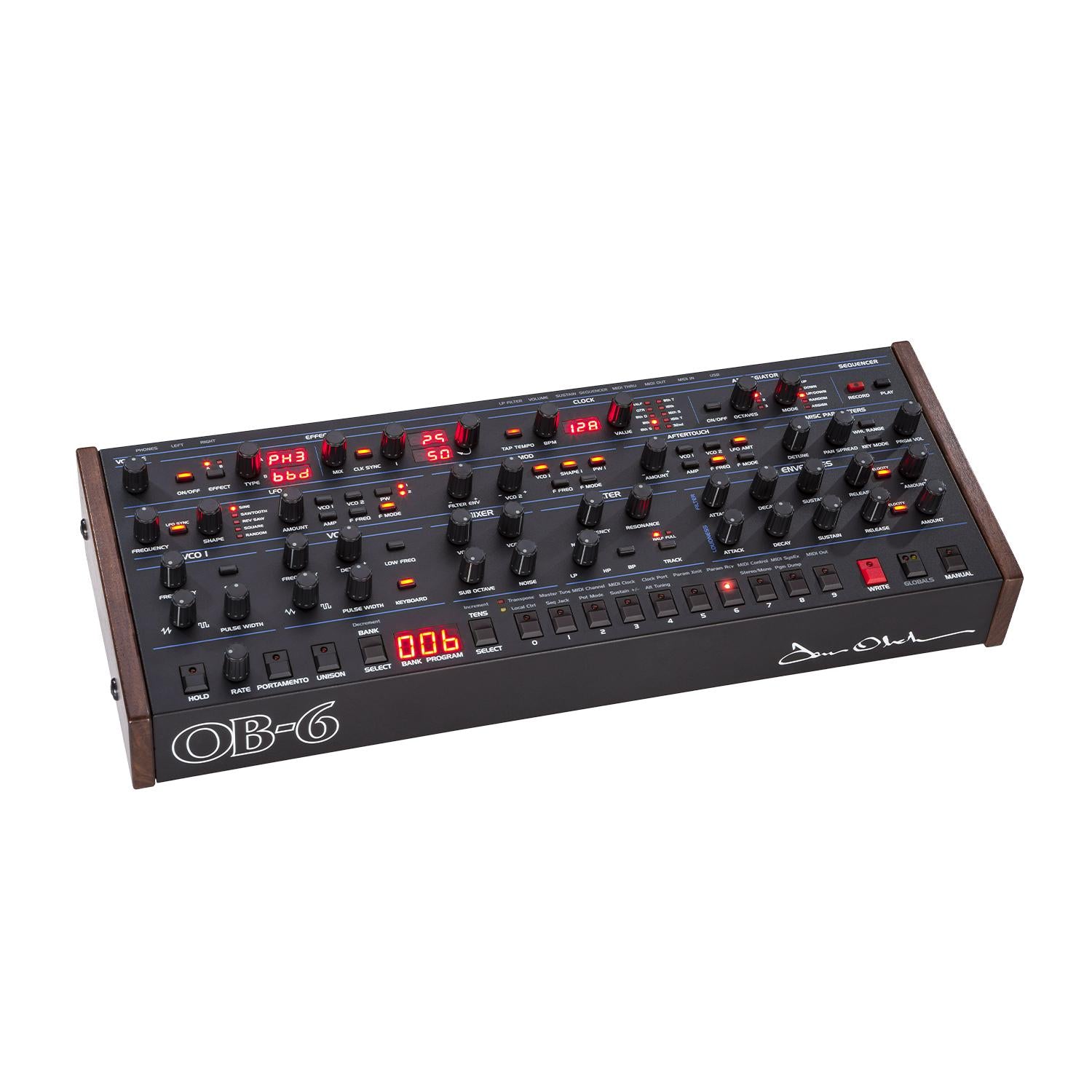

The OB-6 Desktop Module is as powerful and easy to use as its counterpart, the OB-6 Keyboard. The module has the same controls as the keyboard version and provides the same immediacy and ease of use. As with the OB-6 Keyboard, all parameters are at your fingertips, with full-size knobs and switches and a comfortable, intuitive layout. It sounds huge, just like the keyboard, because inside it's exactly the same. The same analog signal path with discrete VCO and VCF. The same high-quality digital effects. The same classic Oberheim sound that has earned praise from musicians around the world. We've also added a polychain feature so two OB-6s can be paired for twelve-voice polyphony.

• Full-size, semi-weighted, 4-octave keyboard with velocity and aftertouch.


• Backlit Pitch and Modulation Wheels.


• Spring-Actuated Tone Wheel with Program Selectable Range (1 to 12 Semitones Up and Down).


• Transposition Controls for an 8 Octave Range.


• Hold the Switch Latches to Keep the Notes On.


• Polyphonic Portamento.


• Unison (Monophonic) Mode with Configurable Voice Count, from One to Six Voices, Chord Memory and Clef Modes.


• Manual Switch, When On, Front Panel is On, What You See is What You Hear.


• 500 User Programs and 500 Factory Programs in 10 Banks of 100 Programs each.


• Direct Program Access, Including One-Button Access to the Current Set of 10 Programs.

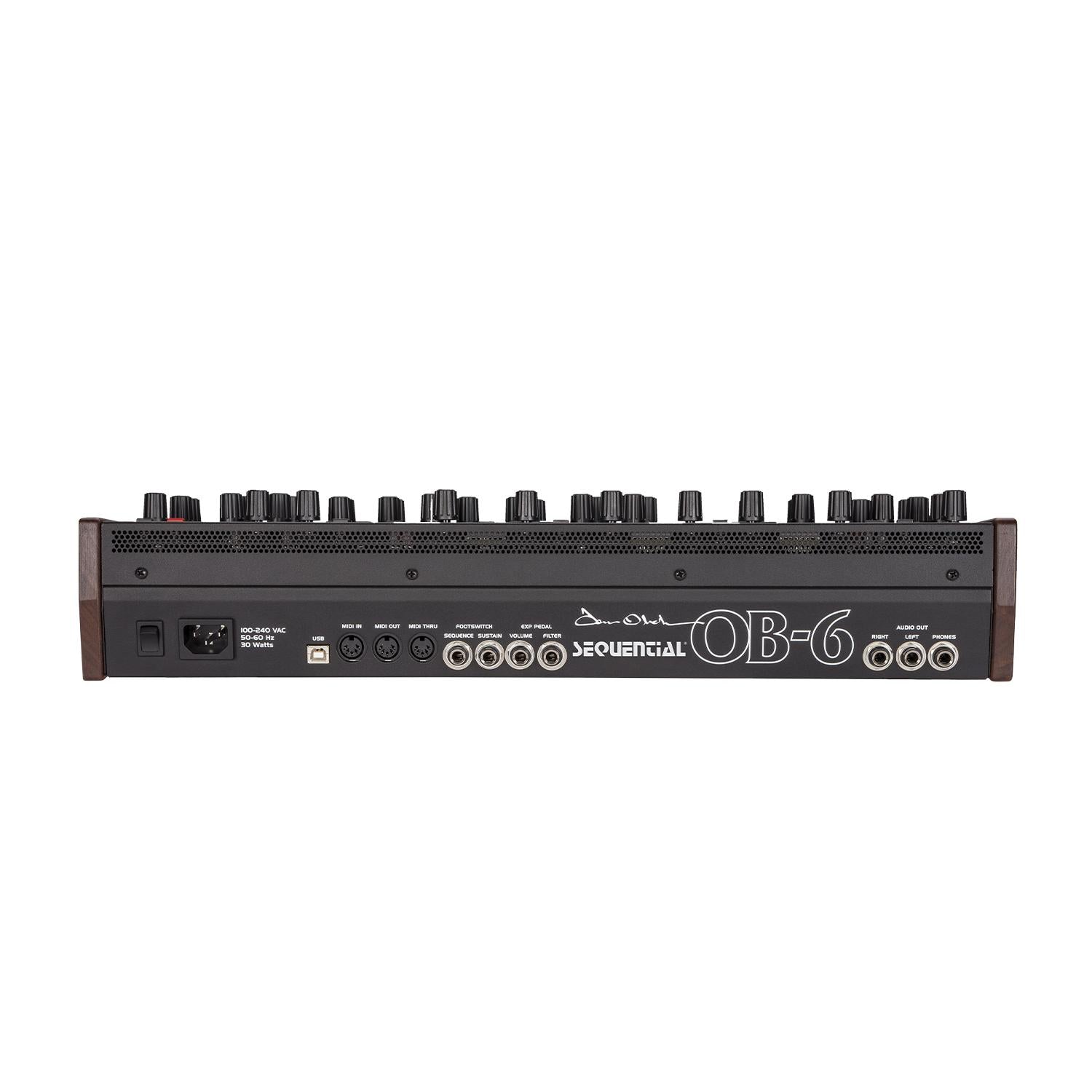

• Left/Mono and Right Audio Outputs (2 x 1/4” Jacks).


• Headphone Output (Stereo, 1/4” Jack).


• MIDI Input, Output and Pass-Thru Ports.


• USB for Bidirectional MIDI Communication.


• Filter Cut Expression Pedal Input.


• Volume Expression Pedal Input.


• Sustain Pedal Input.


• Sequencer Start/Stop Pedal Input.


• IEC AC Power Inlet for Internal Power Supply.


• It operates worldwide with voltages between 100 and 240 Volts at 50 to 60 Hz.


• Maximum Power Consumption of 30 Watts.


• This product has a 1-year warranty against factory defects.
