Ultra-compact mixer IKMUL IRIG MIX DJ IK MULTIMEDIA

Ultra-compact IKMUL IRIG MIX DJ mixer

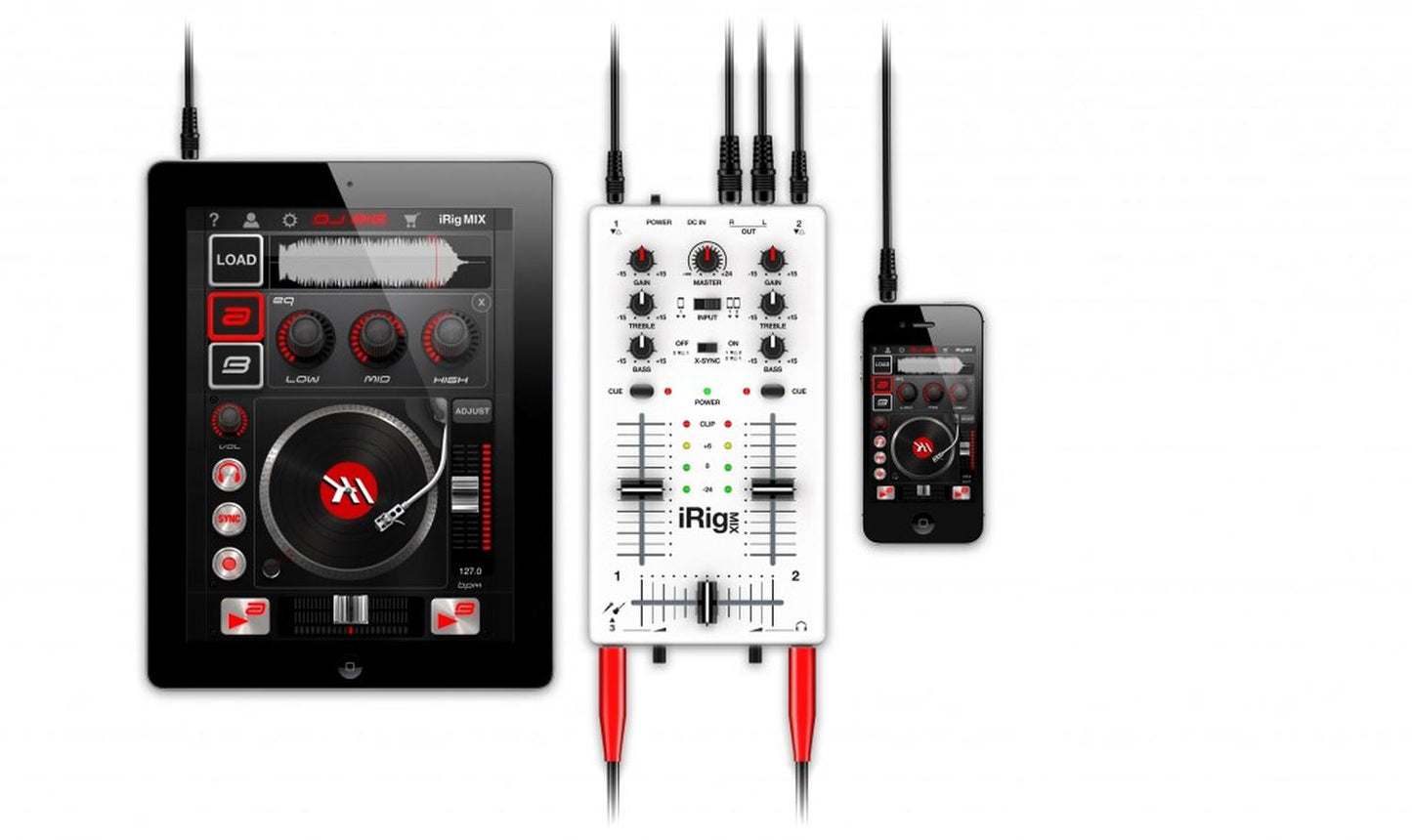

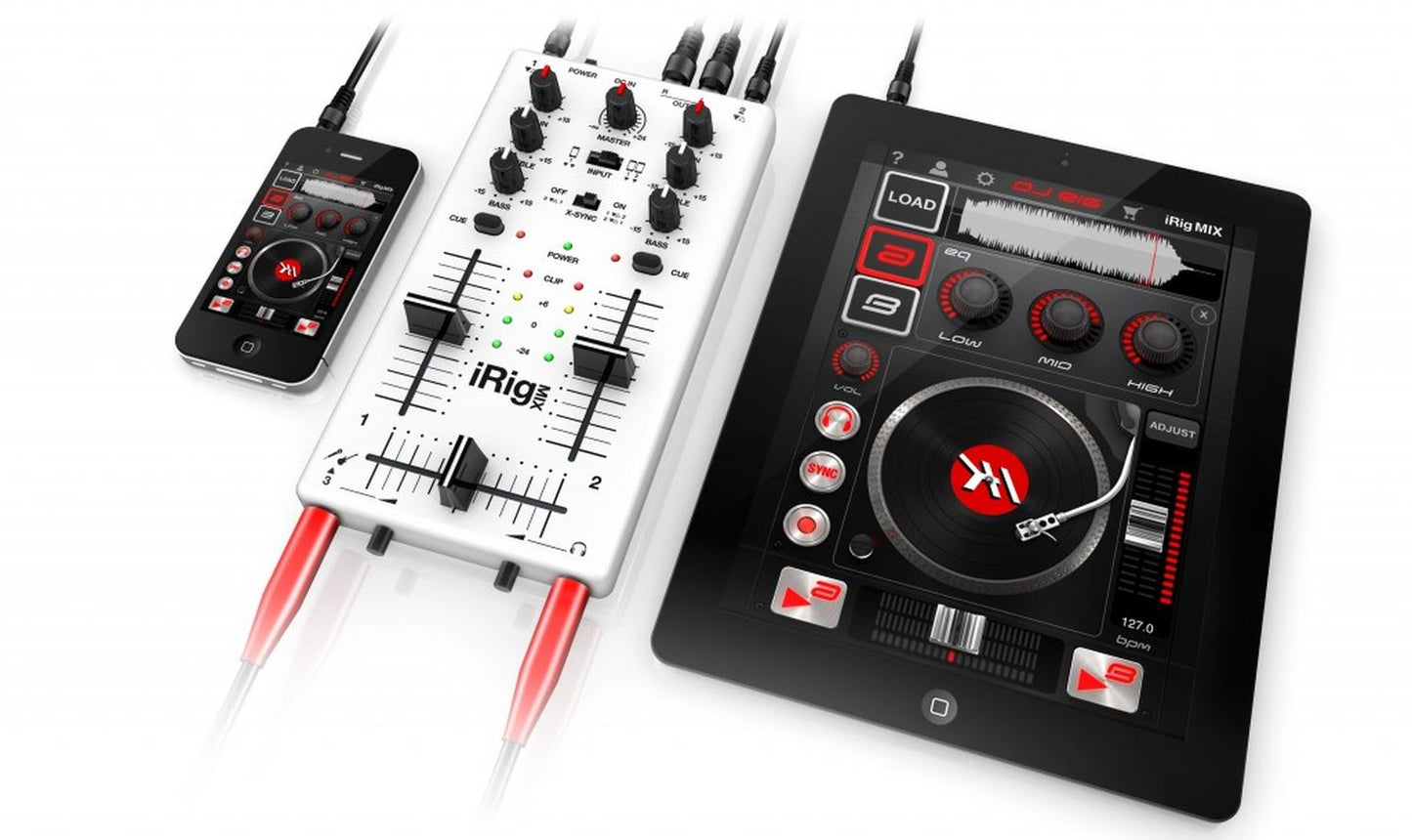

Rig™ MIX is the first mobile mixer for iPhone, iPod touch, or iPad.
iRig MIX offers the same controls you'd expect from any professional DJ mixer.
(fader, references, equalizers and volume controls, etc.)

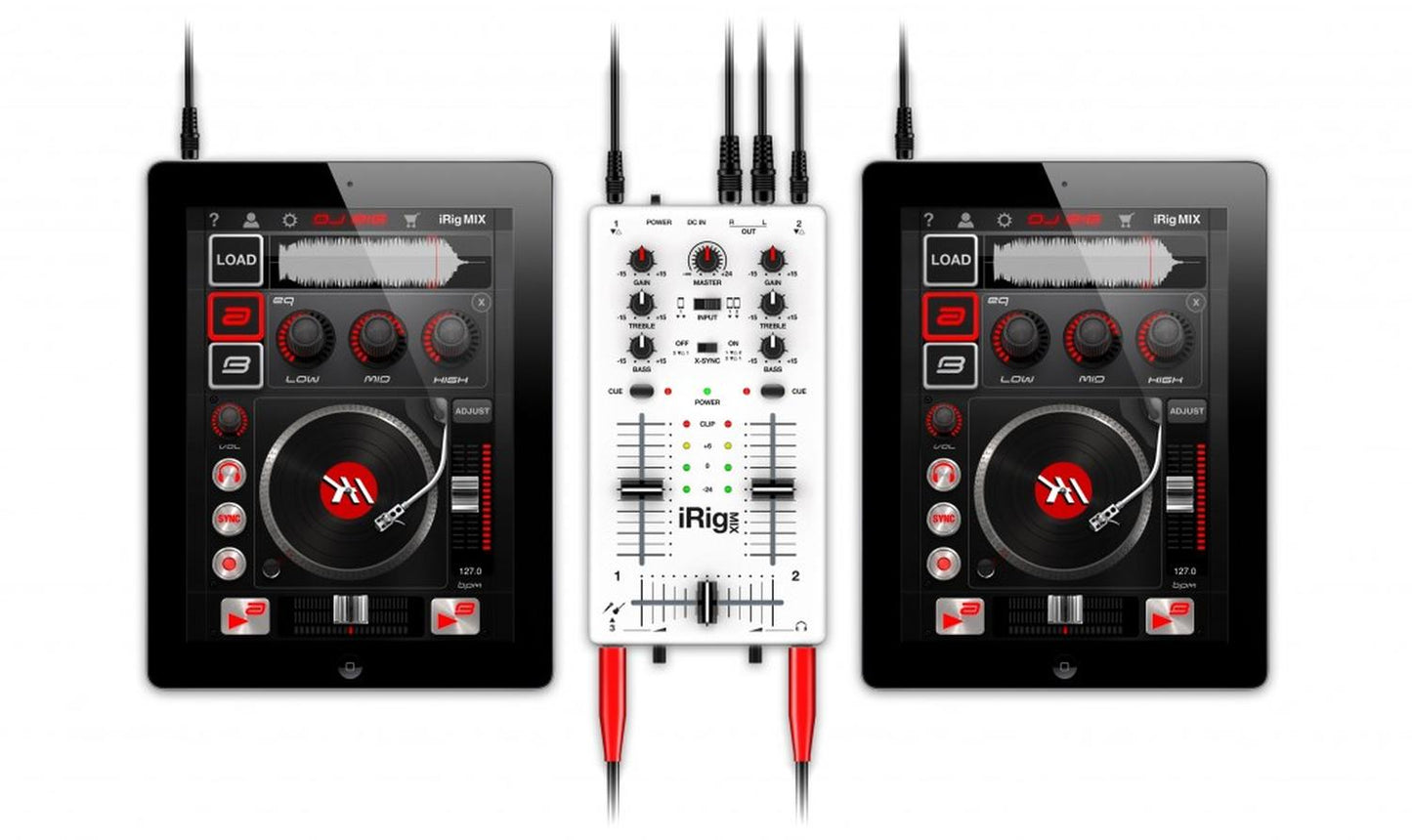

in an ultra-compact mobile mixer that can be used with a wide variety of iOS DJ mixer apps.
It is a complete DJ system for rehearsing, playing and recording.
iRig MIX's lightweight and sleek design make it easy to transport in any iPad case.

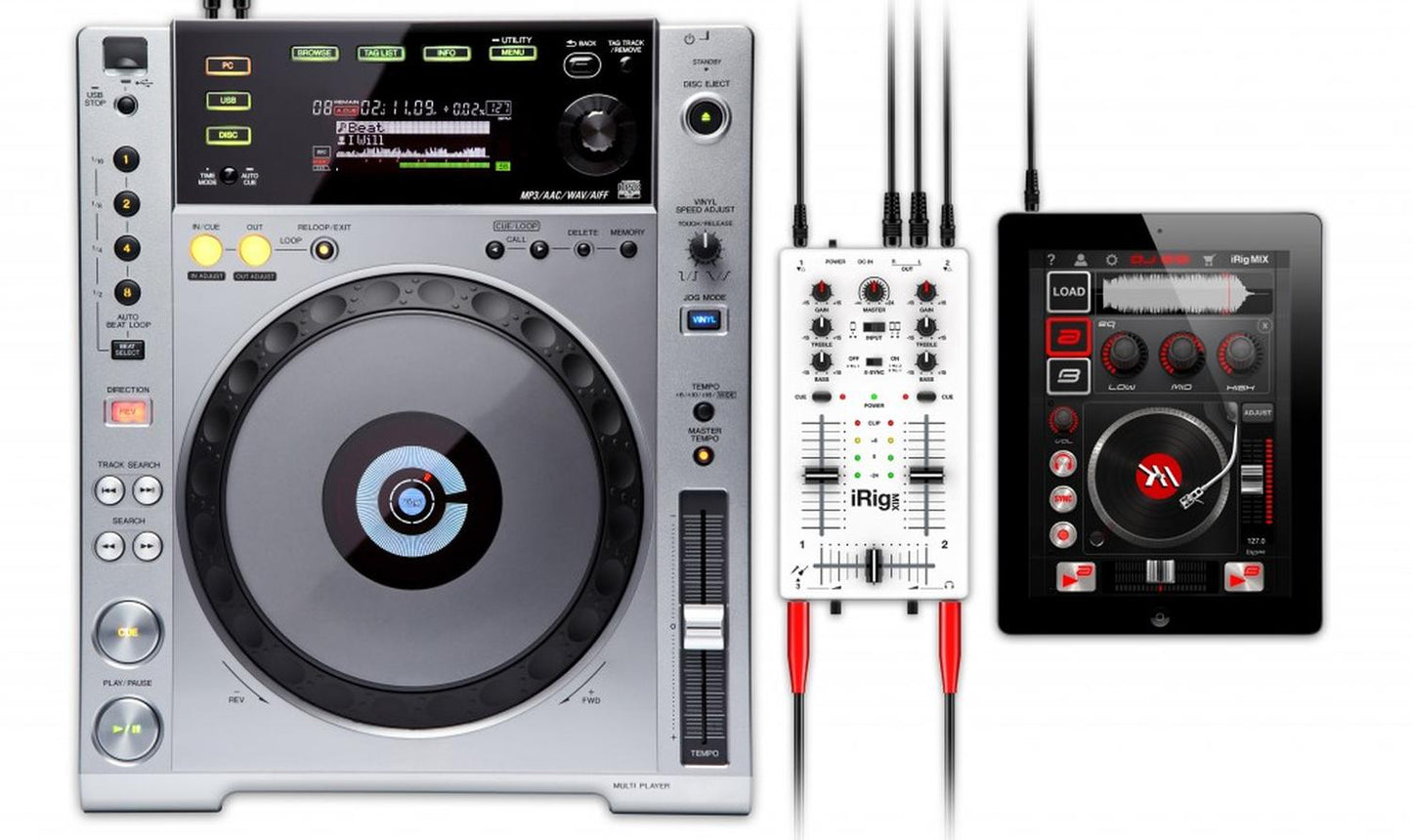

For the first time on any DJ mixer, iRig MIX can be used to mix all types of audio sources.

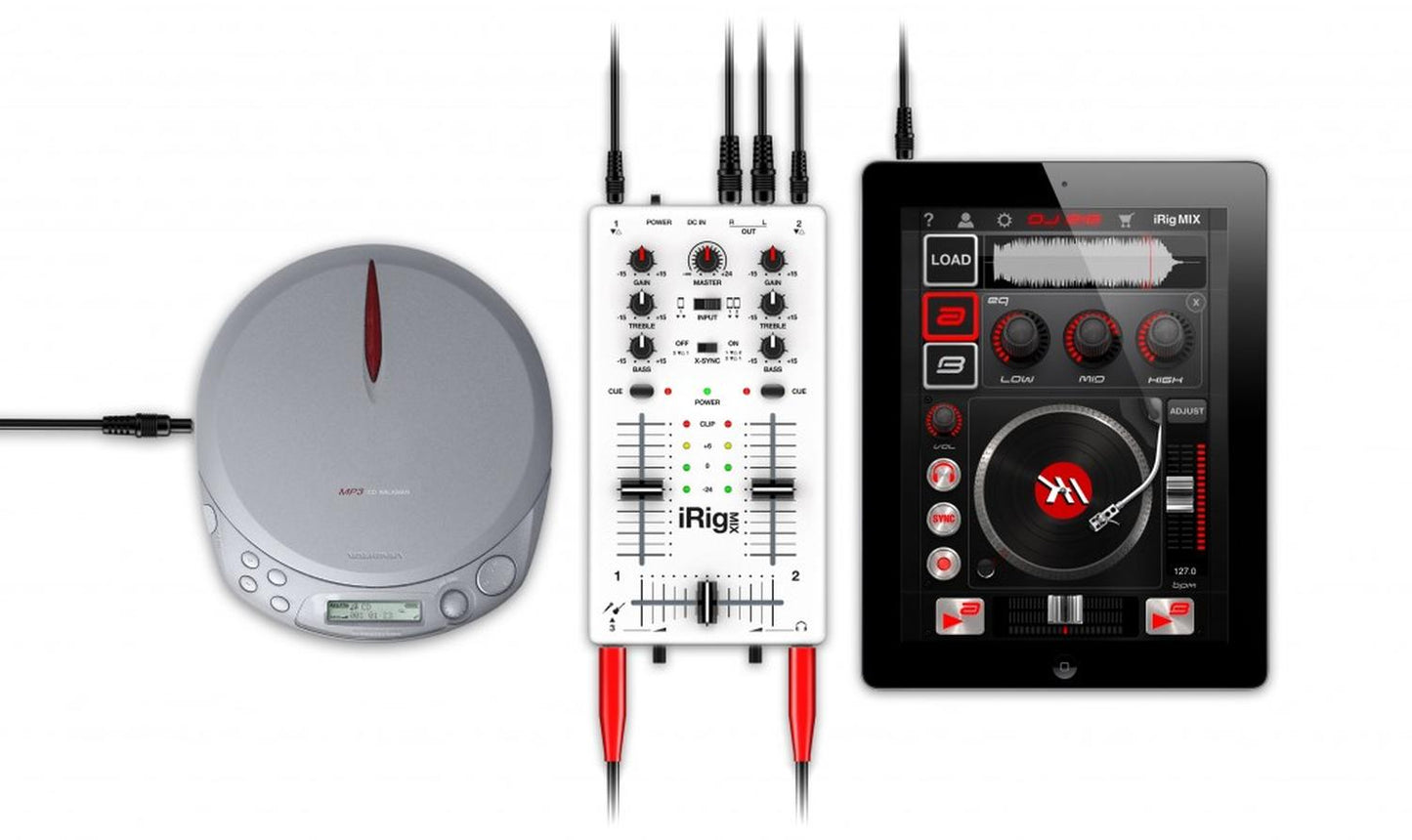

(from mp3 players, CD players, etc.) with an iOS device that uses automatic beat matching and rhythm sync.
This is achieved with X-Sync, a feature that works in conjunction with IK Multimedia's free DJ Rig app included with iRig MIX.

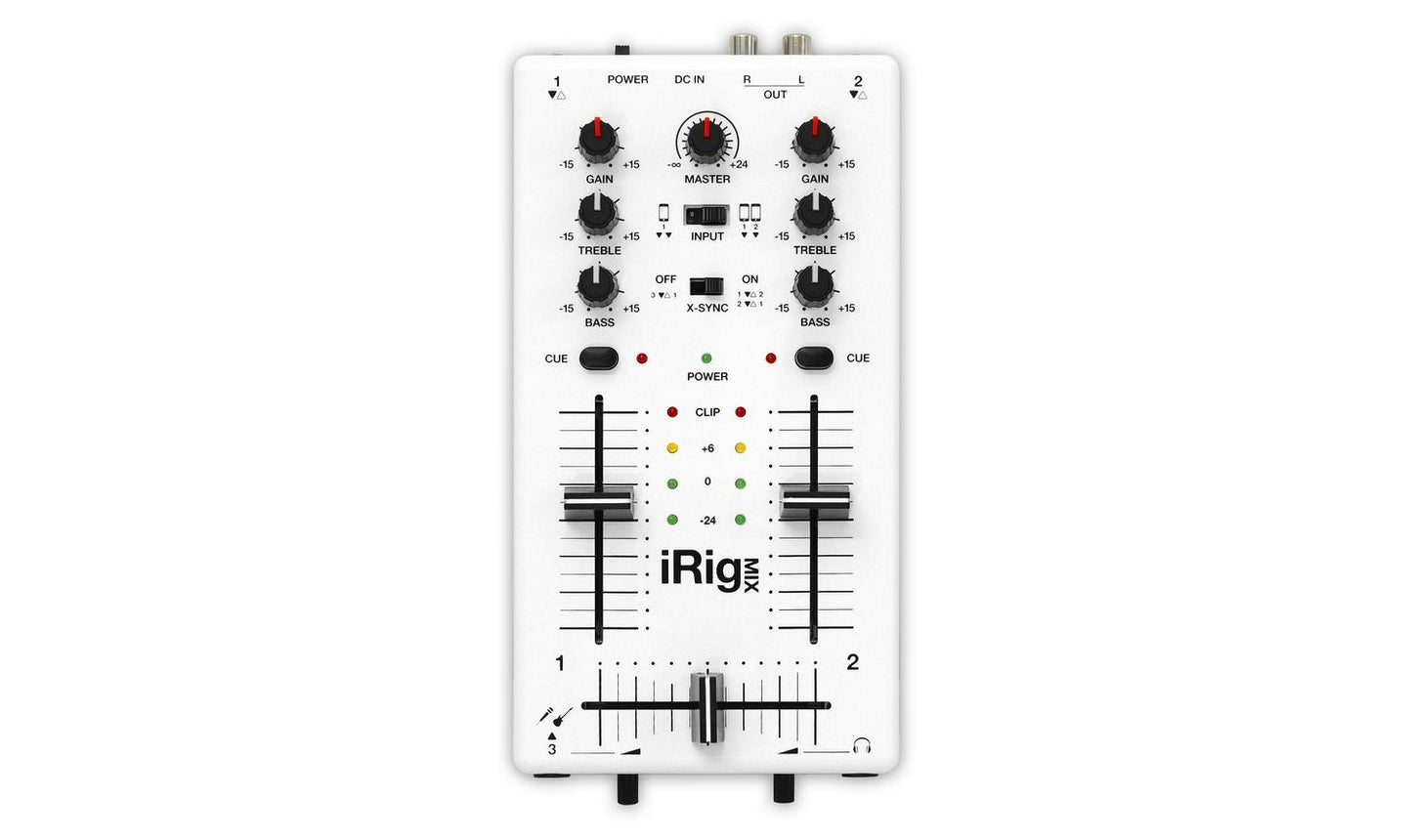

• POWER: Turn on iRig MIX. The POWER LED will light up.


• GAIN: Adjust this control to set the input gain for channels 1 and 2.


• TREBLE: Adjust this control to adjust the high frequencies on channel 1 or 2.


• BASS: Adjust this control to adjust the low frequencies on channel 1 or 2.


• CUE: Press this switch on Channel 1 or 2, depending on which you want to monitor in your headphones.


• CHANNEL LEVEL SLIDER: Move this slider up to increase the volume of Channel 1 or 2.


• CHANNEL CROSSFADER: Move this slider to the LEFT to hear Channel 1 on the master outputs,


• or move this slider to the RIGHT to hear Channel 2 on the master outputs.

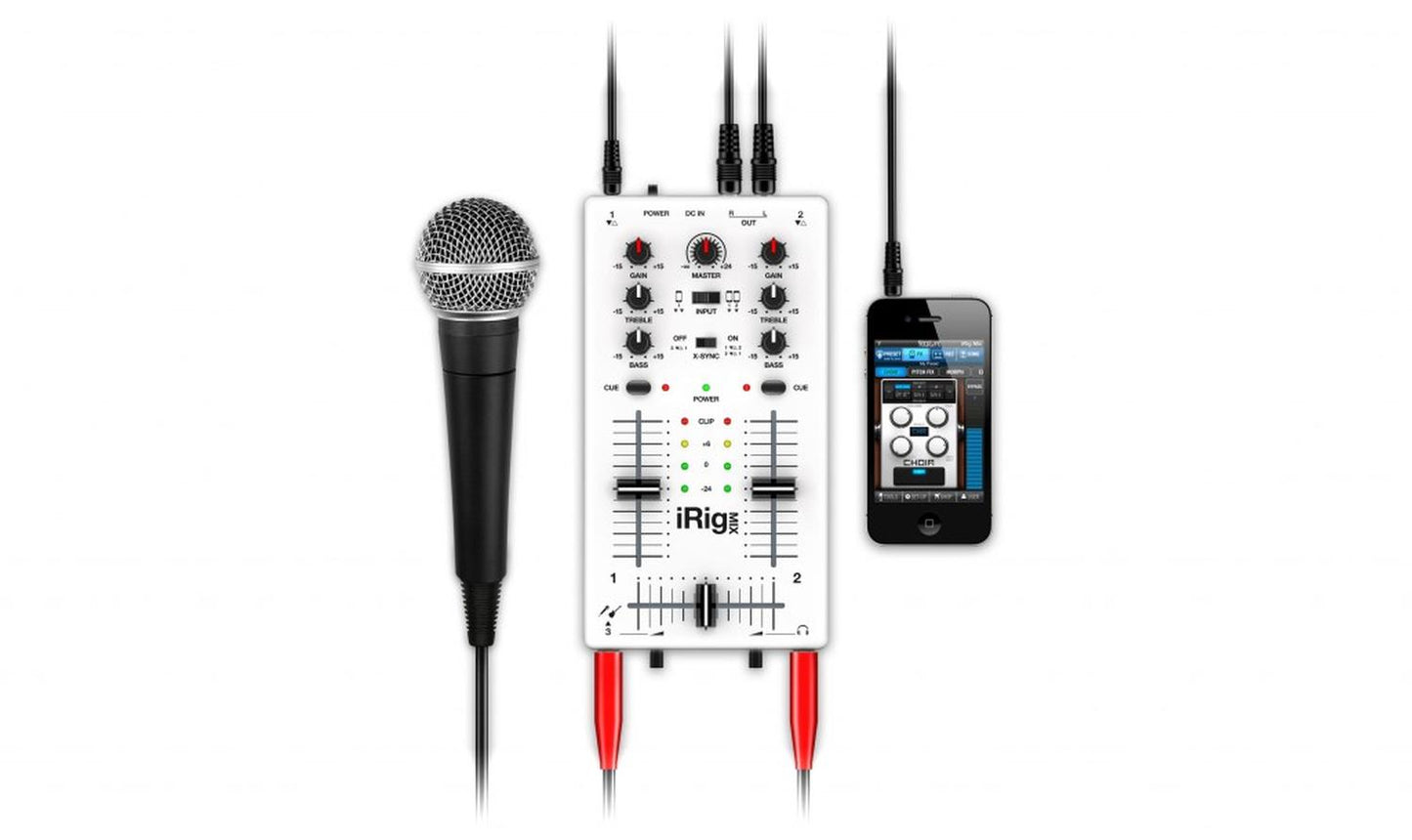

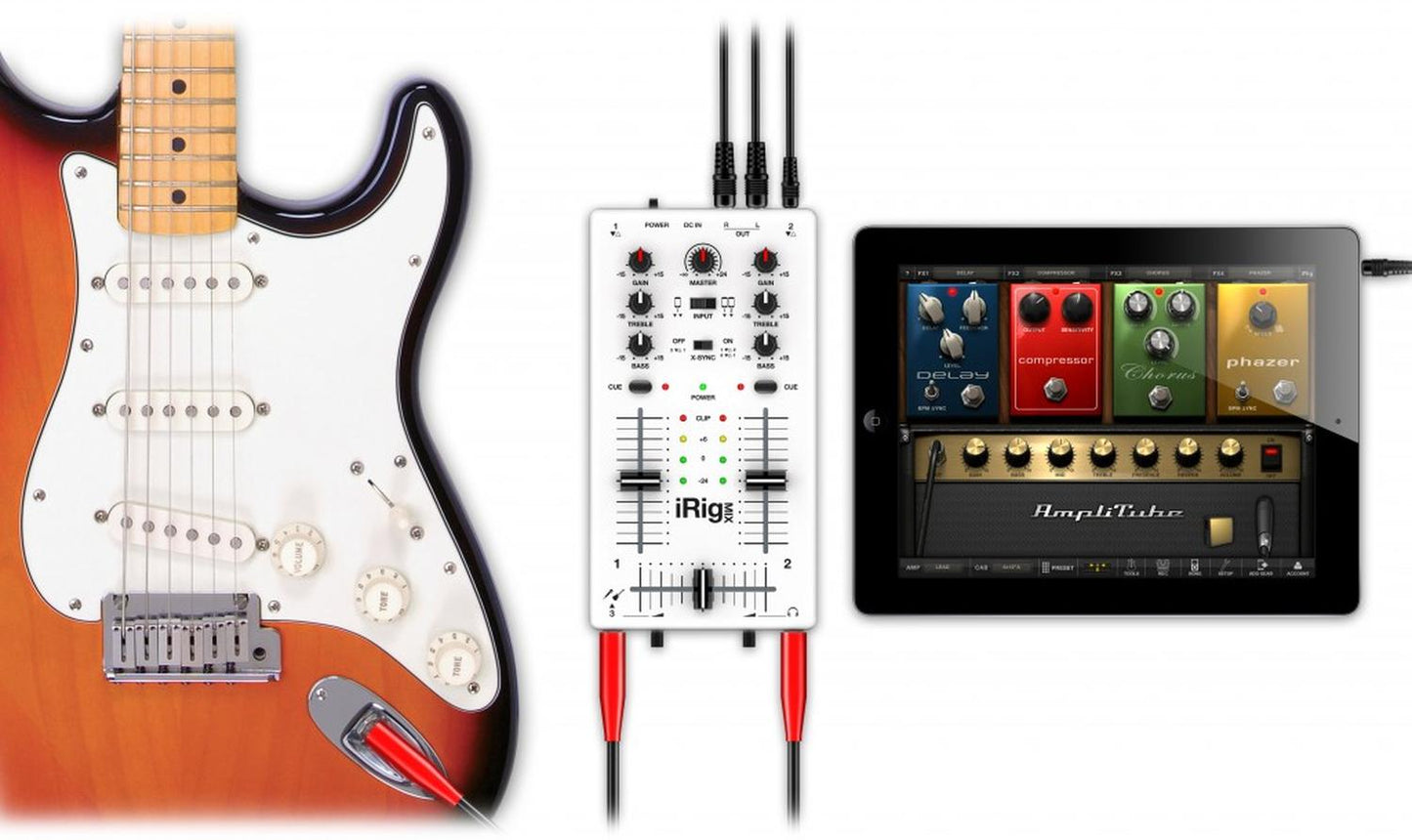

• CHANNEL 3 LEVEL: This control is used to set the level of a microphone or instrument connected to Channel 3.


• HEADPHONE LEVEL: This control is used to adjust the headphone volume.


• MASTER LEVEL: Use this control to adjust the overall output volume of iRig MIX.


• MASTER LEVEL LEDS: These LEDs are used to monitor the iRig MIX level of the LEFT and RIGHT master output channels.
