m20x digital mixer

The M 20X is a fully customizable mixer with 16 high-quality remote-controlled preamps and 11 motorized faders. Despite its size, the M 20X offers a wealth of features, including high-quality preamps, studio-grade digital signal processing, Wi-Fi remote control, and comprehensive multitrack recording and playback capabilities. The mixer offers a total of 20 analog inputs and 14 output channels, distributed across balanced analog outputs and one AES/EBU digital output.
Every function is just a tap or two away, with intuitive navigation and a high-contrast interface across all menus. You have complete control of your live mix, all within one of the most compact systems on the market.

• Frequency response: 20 Hz ÷ 20 kHz.


• Dynamic range, analog to analog: 109 dB A-weighted.


• Channels: 20.


• Microphone: 8.


• Gain range: 0dB ÷ 60dB.


• Mic input impedance (kOhm): 3.3 kOhm.


• Maximum input level: 18 dBu.


• Phantom power +48 V: Yes.


• Mic/Line (XLR/TRS combo): 8.


• Gain range: 0dB ÷ 60dB.


• Microphone input impedance (XLR): 3.3 kohms.


• Line input impedance (TRS): 12.8 kohms.


• Maximum input level (XLR): 18 dBu.


• Maximum input level (TRS): 29 dBu.


• Phantom power +48 V: Yes.


• Balanced line (1/4" TRS): 2.


• Gain range: -10dB ÷ 10dB.


• Line input impedance (TRS): 18 kilohms.


• Maximum input level (TRS): 18 dBu.


• Stereo line (3.5 mm jack): 1.


• Gain range: -10dB ÷ 10dB.


• Line input impedance (TRS): 15 kilohms.


• Maximum input level (TRS): 18 dBu.

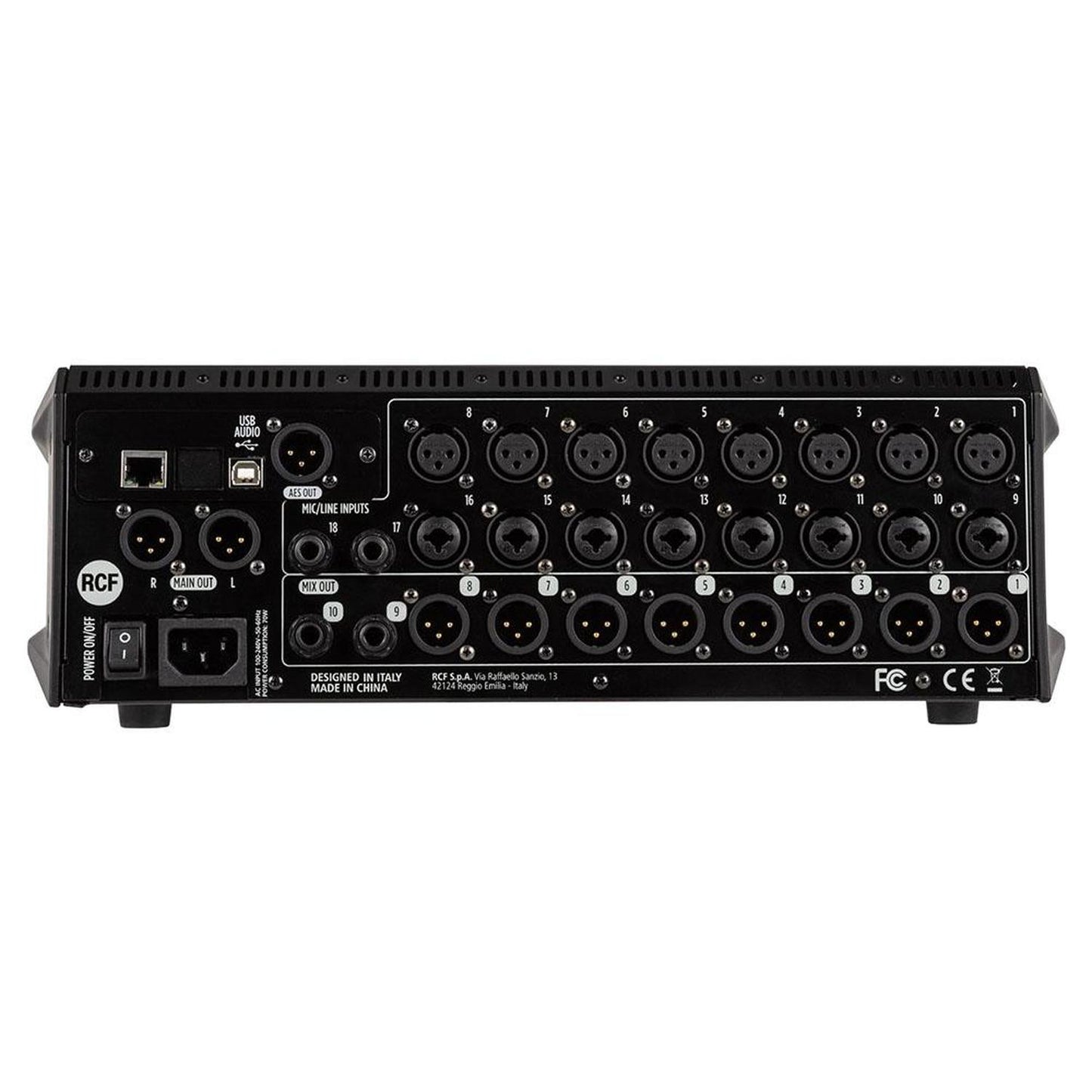

• Input connectors: XLR, connector.


• MIX bus output: 8.


• Main output (balanced XLR): 2.


• Main output impedance (ohm): 50 ohms.


• Main output level (dBu): 24 dBu.


• Mix Output (Balanced XLR): 8


• Mix Output (1/4" TRS): 2.


• Output impedance: 150 ohms.


• Maximum output level: 24 dBu.


• Headphones: 1.


• Output impedance: 50 ohms.


• Maximum output level: 18 dBu.


• AES3 (XLR): 1.


• Output connectors: XLR, connector.


• This product has a 1-year warranty against factory defects.
