Mobil Led Head ILL648 AMDJ AMERICAN

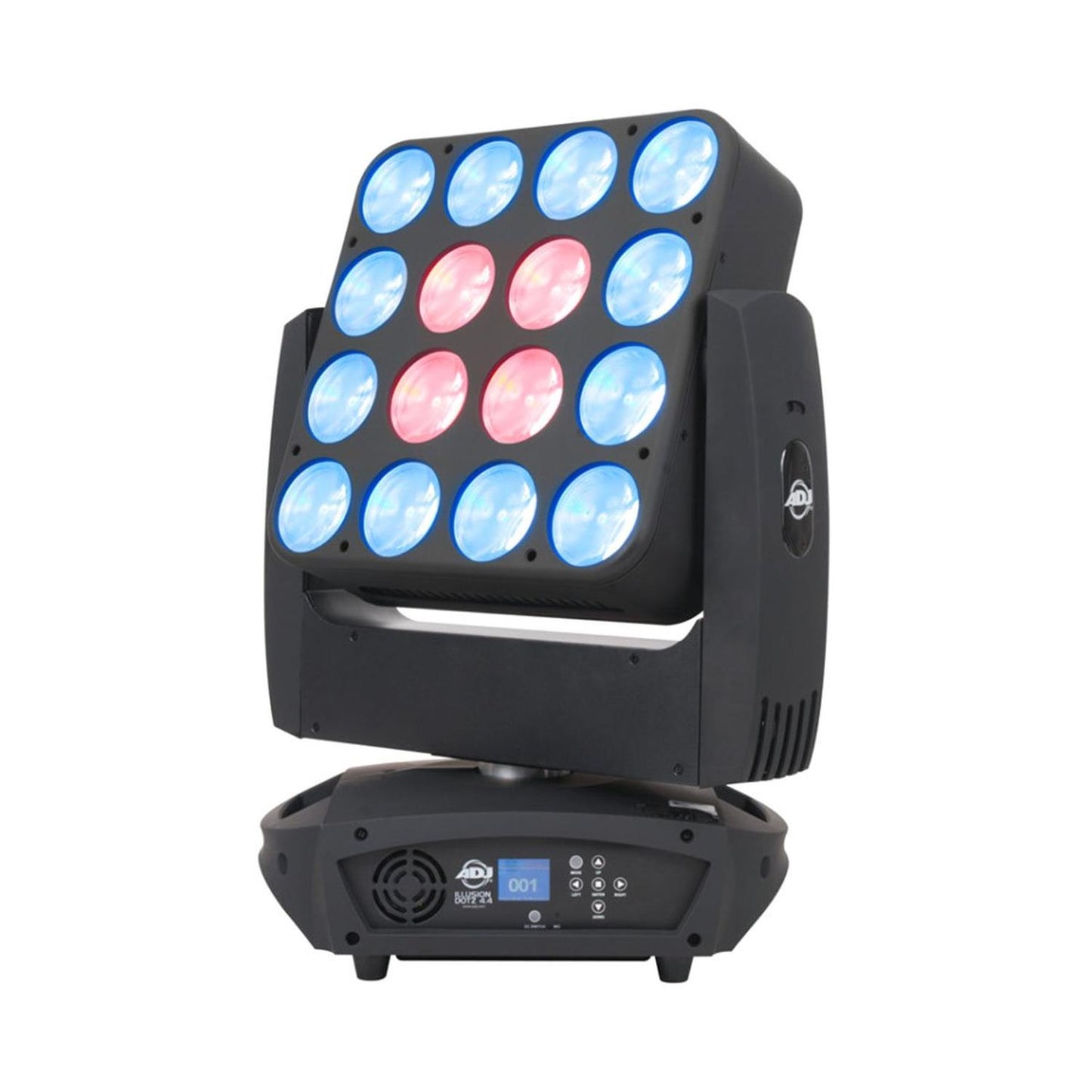

Take your light show to the next level with the ADJ Illusion Dotz 4.4, a moving head wash fixture featuring sixteen controllable TRI LEDs with 30W Chip-on-Board (COB) pixels. Its 360/540-degree pan and 270-degree tilt allow the light beams to move and rotate, adding extra excitement to any light show.

• Moving head with 4X4 matrix of pixel-controllable tri-color LEDs


• Light source: 16 x 30W RGB COB LEDs,


• 100,000 lamp life - Beam angle: 15 degrees


• 4 operating modes: DMX, primary/secondary, stand-alone and sound active


• 3 DMX channel modes: 12, 14 or 59 (3 and 5 pin input/output)


• Supports RDM (Remote Device Management)


• 5 dimming curve settings


• Edit and save scenes to the built-in memory


• 15 degree beam angle


• Panoramic: 360 degrees or 540 degrees


• Tilt: 270 degrees


• Digital display for easy setting of addresses and functions


• RJ45 input/output for Artnet/KlingNet control


• Light output: 19200 LUX @ 2M; 5410 LUX @ 4M (15-degree beam)


• PowerCon AC Input/Output;


• Daisy chain up to 3 units at 120V or 5 units at 22V


• Power consumption: 468 W max.


• Multi-voltage operation: 100-240V, 50Hz/60Hz (auto-sensing)


• Power cord length: 1.8 M (IEC)


• This product has a 1-year warranty against factory defects.
