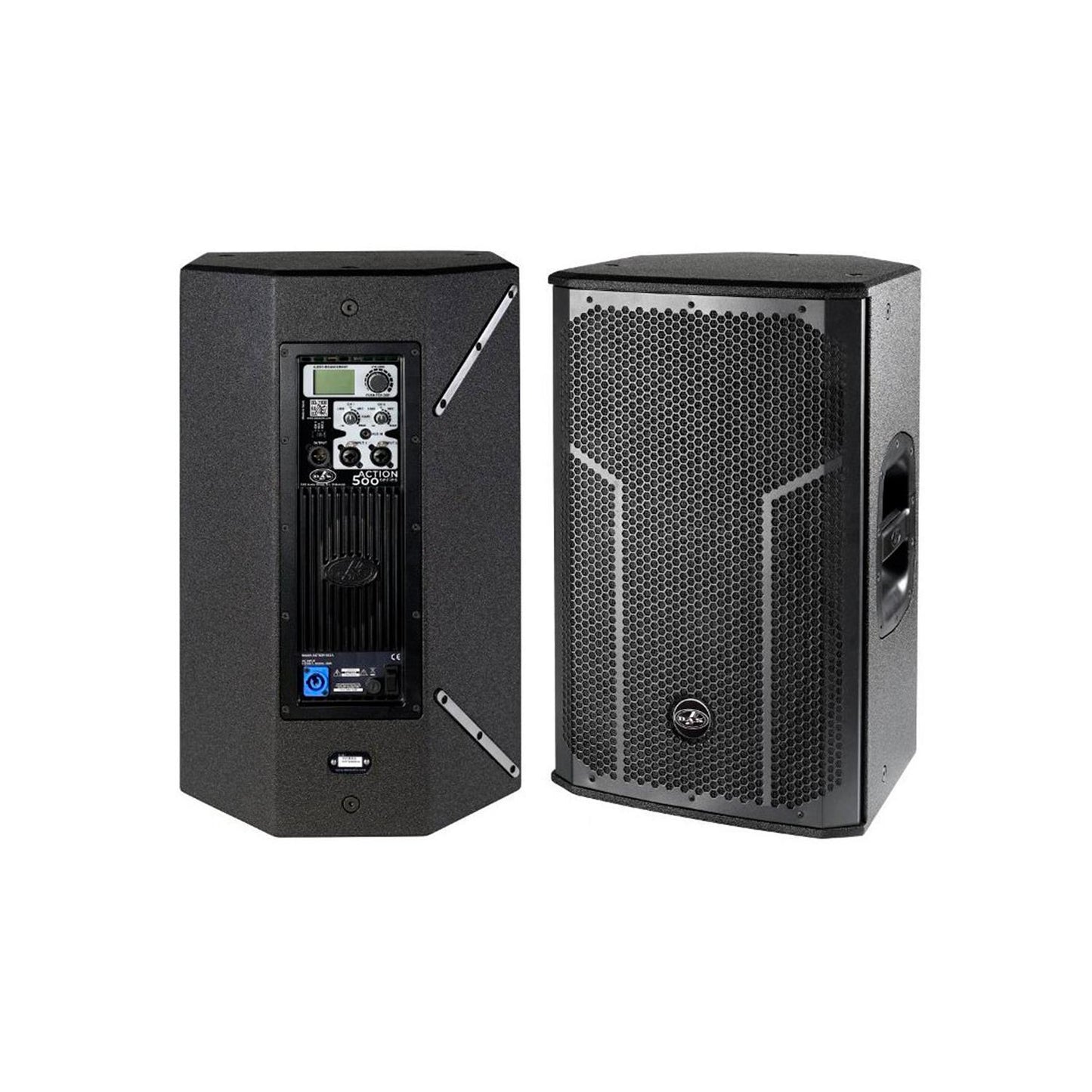

12" Active Speaker ACTION-512A DAS

The ACTION-512A is an active system designed to provide great versatility, from fixed installations to its more common portable PA application. Thanks to its 90° x 60° rotatable horn, the speaker can be used horizontally in an installation, as a stage monitor, or even as a front fill.
As part of our company culture, all our systems are developed under the same philosophy: applying the highest possible quality to both the materials and the overall system design. In the ACTION-500A series, we use the same birch plywood we use in our touring systems, achieving a sound warmth and robustness that is difficult to match in this segment. In addition, all active heads in the series feature a mixer with two balanced XLR mic and line inputs, an additional 3.5 mm mini-jack input, and a PowerCON connection.
The system features a 12MI4 speaker for low frequencies and an M-34 driver for high frequencies, which, in conjunction with the 1000W peak power Class D amplifier, achieve exceptional performance. The DAScontrol™ interface allows users to configure presets, EQ modes, delay, gain control, and mix of signal sources using a high-end 24-bit DSP and a rear-mounted LCD screen.

• Frequency range (-10 dB): 50 Hz – 20 kHz.


• Horizontal coverage (-6 dB): 90º.


• Vertical coverage: 60º.


• Maximum SPL at 1 m: 131 dB.


• Amplifier rated power (continuous): 500W.


• Amplifier rated power (peak): 1000W.


• Input Type: Balanced.


• Input impedance: 20 kilohms.


• Input sensitivity: 1.95 V (+8 dBu).


• Audio signal input connector: 2 x XLR female.


• Auxiliary Input: 1 x 3.5mm mini jack.


• Audio signal loop through connector: 1 XLR male.


• Control: DAScontrol™


• Current consumption 230 V / 115 V: 1.1 A/2.2 A.


• This product has a 1-year warranty against factory defects.
