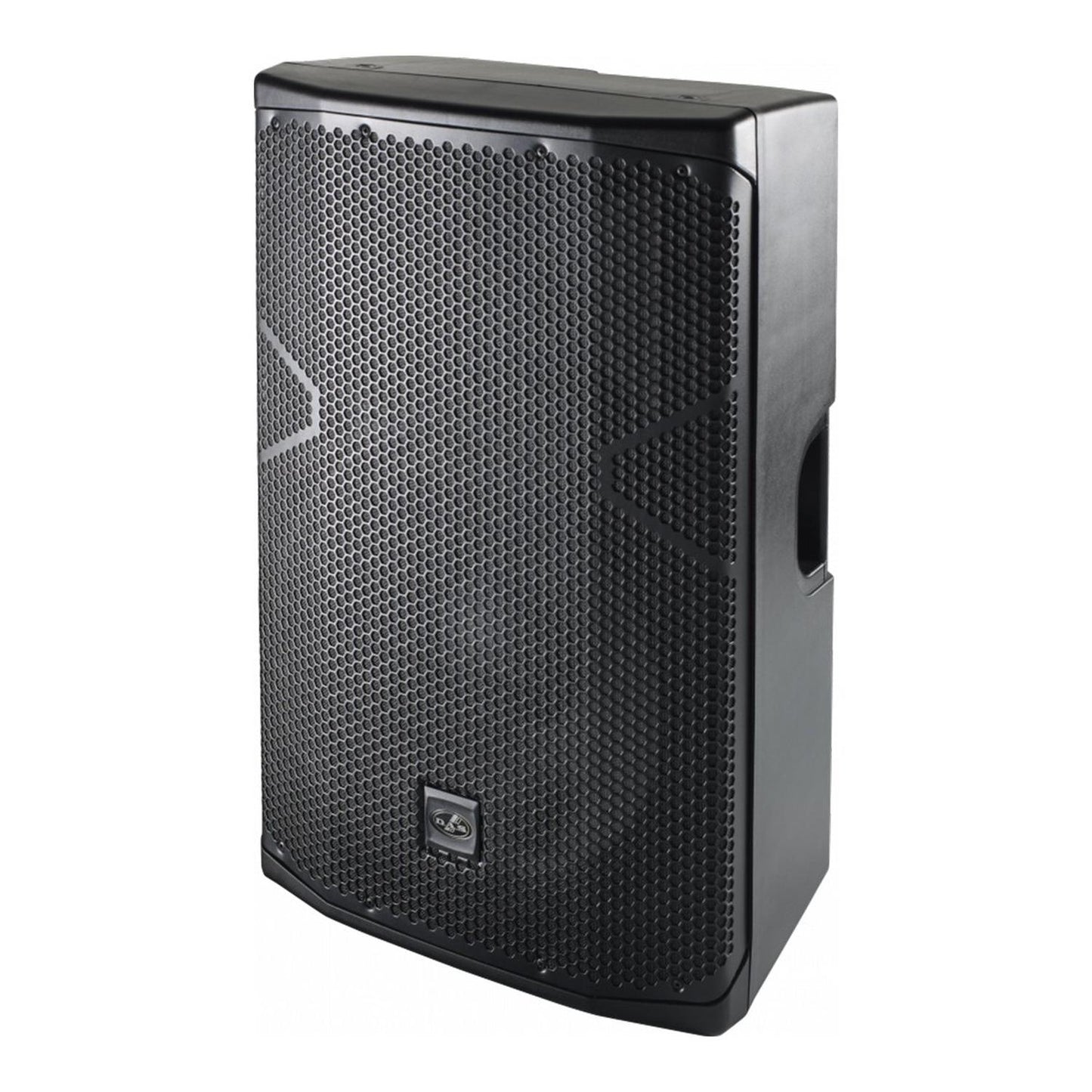

15" ALTEA-715A active speaker

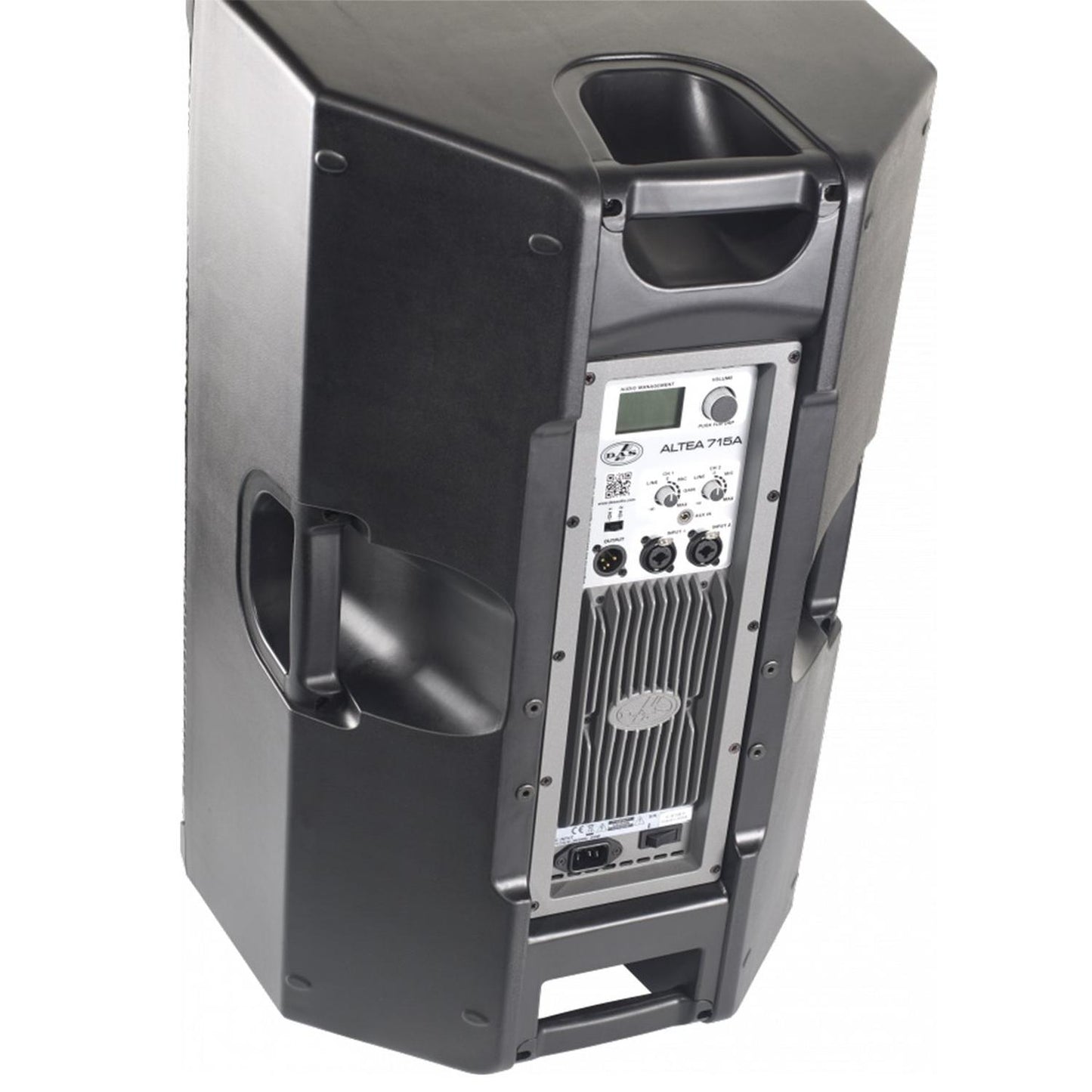

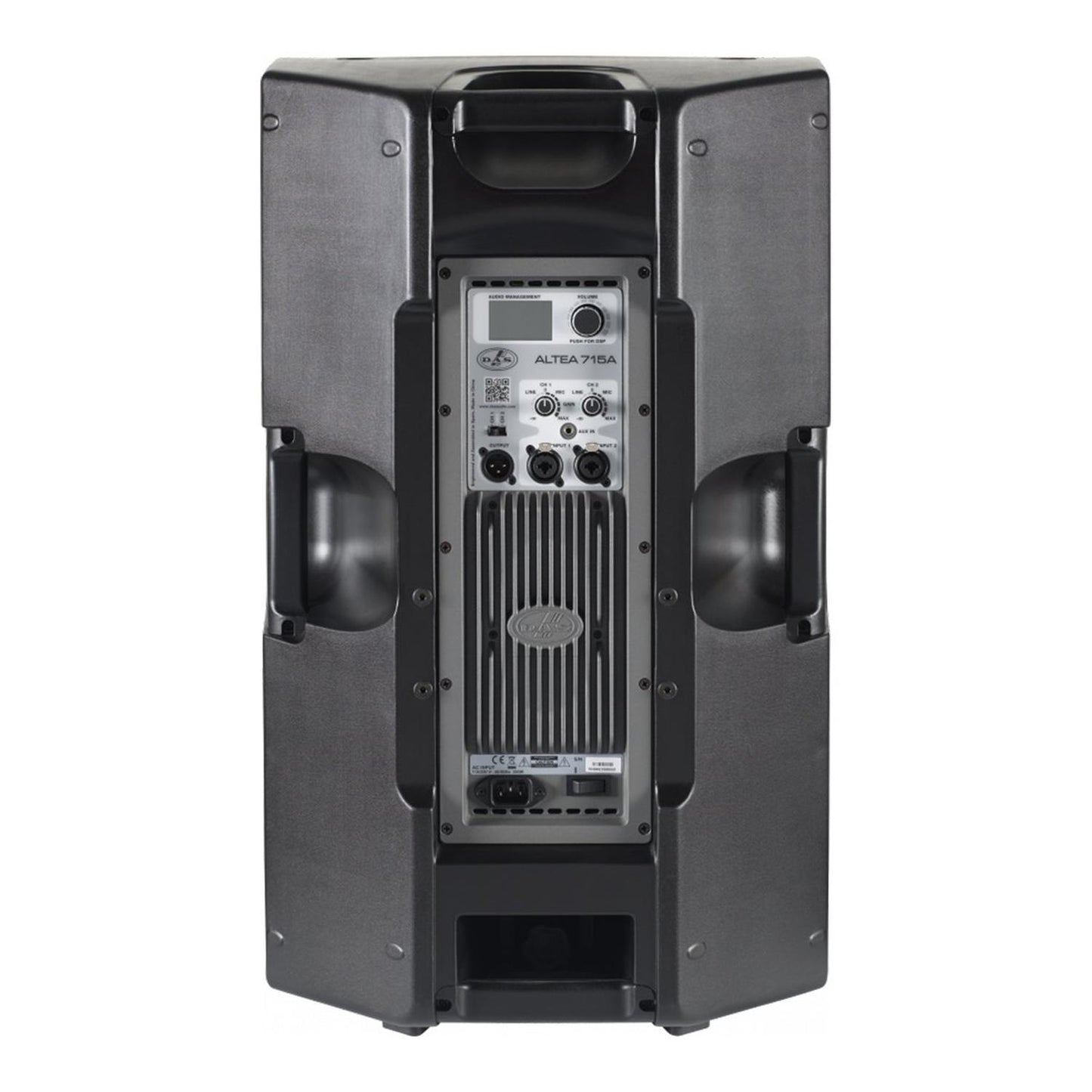

The ALTEA-715A is a self-powered portable PA system with a multi-angle polypropylene enclosure that allows for use as a stage monitor. Its dual-channel, 1500Wpeak Class-D amplifier provides wide bandwidth, wide dynamic range, and exceptionally low distortion, difficult to find in other systems in this market segment. The ALTEA-715A's signal processing includes FIR (Finite Impulse Response) digital filters. Voice, EQ, mode, delay, and gain controls are user-configurable via a rotary knob and LCD display on the rear. The ALTEA-715A allows for playback of music sent wirelessly from mobile devices. The 15FV4 speaker delivers deep, powerful bass. High frequencies are generated by the M-28 compression driver with a 1" exit and FEM optimization. The passive version of the ALTEA-715 is designed for use with external amplification.

• Frequency range (-10 dB): 45 Hz – 20 kHz.


• Horizontal coverage (-6 dB): 90º.


• Vertical coverage: 60º.


• Maximum SPL at 1 m: 132dB.


• Amplifier power rating (continuous): 750 watts.


• Amplifier power rating (peak): 1500 watts.


• Input Type: Balanced.


• Input impedance: 20 kilohms.


• Input sensitivity: 1.95 V (+8 dBu).


• Audio signal input connector: 2 x XLR female.


• Auxiliary Input: 1 x 3.5mm mini jack.


• Audio signal loop through connector: 1 XLR male.


• Control: DASlink™, DAScontrol™.


• Current consumption 230 V / 115 V: 1.5 A/3.0 A.


• This product has a 1-year warranty against factory defects.
